ICT 103 Systems Analysis and Design - Kings Own Institute

Assignment - Online Cab Booking System

Question: Demonstrate that they can analyse the given case study. Students are required to draw use case, Domain model, System Sequence modeling diagrams for the given case study, justify the choose of modeling tools, and explain the conclusions.

WORK TOGETHER WITH EXPERTSMIND'S TUTOR TO ACHIEVE SUCCESS IN ICT 103 SYSTEMS ANALYSIS AND DESIGN ASSIGNMENT!

Solution:

Use Case Diagram 1: Search Cab

Use Case.jpg

Figure 1: Use Case diagram for Search Cab

Number

1

Name

Search Car

Summary

User will search for available cabs in the nearby area

Priority

5

Precondition

1.       User Logged in with valid user credentials

2.       User available for GPS enable device

Post Condition

User will be able to book for cab

Primary Actor

Registered User

Secondary Actor

Admin, Database Server

Trigger

Login

Main Scenario

1.       Application will determine location of the user

2.       User will be offered with possible cabs within the pre- programmed range

3.       User will then be able to filter his type of car required


Alternative Path

4a) User will be served with an option of booking cab on demand

Use Case Diagram 2: Booking Cab

Use Case1.jpg


Figure 2: Use Case diagram for Booking Cab

Number

2

Name

Booking Cab

Summary

User will be able to book the searched cab

Priority

5

Precondition

1.       User will search cab as per requirement

Post Condition

User will be able to reserve cab

Primary Actor

Registered User

Secondary Actor

Database Server, Driver

Trigger

Login

Main Scenario

1.       By this user will be able to reserve chosen cab

2.       User will also be given details about the estimated fare on determined location.

3.       No other user can avail the car if booking by the another user

4.       Notification to be sent to the driver for the reservation.




Alternative Path

2a) User need to choose another type of cab

Use Case Diagram 3: Login

Use Case2.jpg

Figure 1: Use Case diagram for Login into online cab booking system

Number

3

Name

Login

Summary

User will be able to login to online cab booking system

Priority

5

Precondition

User needs to enter the login details such as username and password

Post Condition

No another user maintains the same user name

Primary Actor

New User and Existing User

Secondary Actor

Admin, Database Server

Trigger

Login System

Main Scenario

Login into online cab booking system

Here we have to enter user login details such as user name and password


Alternative Path

1a) If it is wrong password then system will throw the error message and user can re enter the user login details.

EXPERTSMINDS.COM ACCEPTS INSTANT AND SHORT DEADLINES ORDER FOR ICT 103 SYSTEMS ANALYSIS AND DESIGN ASSIGNMENT - ORDER TODAY FOR EXCELLENCE!

Activity Diagram 1: Login

Activity Diagram.jpg

Figure 4: Activity Diagram for User Login into online cab booking System

The above diagram shows an activity diagram for user login for registered login. The registered user can login into online cab booking system and user must enter their username and password. The online cab booking system check the user login details form the database. In case login details are invalid then system will generate the error, message and user can renter the login details to login into online booking system. In case of login details are correct then user successfully logs in to system which take the user to user's settings to fill the details cab booking.

Activity Diagram 2: For Admin

Activity Diagram1.jpg

Figure 4: Activity Diagram for Online Cab Booking Admin

The above diagram shows the activity diagram for admin operations. Admin can login into online booking cab system which validate and enter various operations are manage booking, view feedback, view enquiry, check rent, confirm booking and add car details.

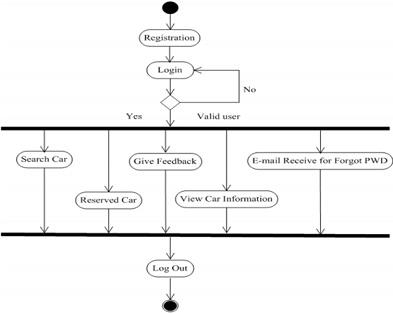

Activity Diagram 3: For User

Activity Diagram2.jpg

Figure 5: Activity Diagram for Online Cab Booking User

The above diagram shows the activity diagram for user operations.The usercan login into online booking cab system which validate and enter various operations are search cab, reserved cab, give feedback, view cab details, email receive for forgot password.

DO YOU WANT TO EXCEL IN ICT 103 SYSTEMS ANALYSIS AND DESIGN ASSIGNMENT? HIRE TRUSTED TUTORS FROM EXPERTSMINDS AND ACHIEVE SUCCESS!

Sequence Diagram 1: For Admin

Sequence Diagram.jpg

Figure 6: Sequence Diagram for online cab booking Admin

The above diagram shows the sequence diagram for admin of online booking system. The sequence diagram is shows order of flow to perform the various operations login into online cab booking system, manage booking, view feedback, view enquiry, check rent, confirm booking and add car details. The login details should validate by the online booking system. In case of login details unsuccessful then system will send error, message and user can re enter the login details to enter into system. The user can book the cab which can acknowledge by the admin and user can view the car details and perform the various operations such as book car, search location and confirm booking. Once location confirmed by the user then user can view the rent status and get the acknowledgement from the user to admin. An admin request for logout from the database once completed booking process.

Sequence Diagram 2: For User

Sequence Diagram1.jpg

Figure 7: Sequence Diagram for online cab booking User

The above diagram shows the sequence diagram for user of online booking system. The sequence diagram is shows order of flow to perform the various operations are search cab, reserved cab, give feedback, view cab details, email receive for forgot password and get car information. The login details should validate by the online booking system. In case of login details unsuccessful then system will send error, message and user can re-enter the login details to enter into system. The user can book the cab which can acknowledge by the admin and user can view the car details and perform the various operations such as book car, search location and confirm booking. The user can search car and enter the car details for booking process. Once location confirmed by the user then user can view the rent status and get the acknowledgement from the user to admin. An admin request for logout from the database once completed booking process. An admin sends the reserved car details to user and car will reserved successfully. The booked car details will send to user and user can view the details of booked car. The admin sends the request to logout online cab booking system then user will logout the system.

Sequence Diagram 3: Login

Sequence Diagram2.jpg

Figure 8: Sequence Diagram for login into online cab booking system

The above diagram shows the sequence diagram for login online booking system. The sequence diagram is shows order of flow to perform the login operation into online booking system. The login details should validate by the online booking system. In case of login details unsuccessful then system will send error, message and user can re-enter the login details to enter into system.

Domain Model Class Diagram 1:

Domain Model Class Diagram.jpg

Figure 9: Domain Model for class diagram

This system has various classes to maintain the details of user login , car details , booking and feed back. The enquiry class will maintain the user id, name and personal details which can add the user, update the user and delete the user details. The feed back class maintain the feed back details which includes the feed back id , name , address details and this class perform the add, view and delete feedback. The booking class will maintain the booking details of the cab which includes the cab id, name , date , source address, destination address, email id and it can perform the view operation to view the booking details. The car class maintain the car details such as car id, brand, colour, price, model name and no of passenger to travel. This class also perform add , update and delete operations.

ARE YOU LOOKING FOR RELIABLE ICT 103 SYSTEMS ANALYSIS AND DESIGN ASSIGNMENT HELP SERVICES? EXPERTSMINDS.COM IS RIGHT CHOICE AS YOUR STUDY PARTNER!

State Machine Diagram:

State Machine Diagram.jpg

Figure 10: State machine diagram

The above diagram shows the state machine of online cab booking system which represented for registration, for booking cab, managing booking. This system perform the various operations to maintain the details of user login , car details , booking and feed back. The enquiry class will maintain the user id, name and personal details which can add the user, update the user and delete the user details. The feed back class maintain the feed back details which includes the feed back id , name , address details and this class perform the add, view and delete feedback. The booking class will maintain the booking details of the cab which includes the cab id, name , date , source address, destination address, email id and it can perform the view operation to view the booking details. The car class maintain the car details such as car id, brand, colour, price, model name and no of passenger to travel.

User Interface Design Diagram 1: Main Idea

User Interface Design.jpg

Figure 11: User Interface Design Diagram for main idea to implement the online cab booking system

User Interface Design Diagram 2: Booking Car

User Interface Design1.jpg

Figure 11: User Interface Design Diagram for cab booking to implement the online cab booking system

User Interface Design Diagram 3:

User Interface Design2.jpg

Figure 11: User Interface Design Diagram for cab booking to implement the online cab booking system
